R27DRE71M4詳細信息
R27DRE71M4
訂購熱線：13360667204
關鍵詞：輸出轉數113.5圈/分鐘減速機電機_R27DRE71M4_R27DM71M4_輸出轉數113.5圈一分鐘減速電機_一分鐘轉113.5圈齒輪減速箱馬達_一分鐘轉113.5圈減速器_一分鐘轉113.5圈電機減速機
R27DRE71M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R27DRE71M4 | 61.30 | 0.37KW | 23.0rpm | 157N.m | 16kg | 3870N | 0.85 |
| R27DRE71M4 | 55.87 | 0.37KW | 25.0rpm | 143N.m | 16kg | 3800N | 0.90 |
| R27DRE71M4 | 48.17 | 0.37KW | 29.0rpm | 123N.m | 16kg | 3680N | 1.05 |
| R27DRE71M4 | 44.90 | 0.37KW | 31.0rpm | 115N.m | 16kg | 3620N | 1.15 |
| R27DRE71M4 | 39.25 | 0.37KW | 35.0rpm | 100N.m | 16kg | 3510N | 1.30 |
| R27DRE71M4 | 36.79 | 0.37KW | 38.0rpm | 94N.m | 16kg | 3460N | 1.40 |
| R27DRE71M4 | 32.47 | 0.37KW | 42.0rpm | 83N.m | 16kg | 3350N | 1.55 |
| R27DRE71M4 | 28.78 | 0.37KW | 48.0rpm | 74N.m | 16kg | 3250N | 1.75 |
| R27DRE71M4 | 24.47 | 0.37KW | 56.0rpm | 63N.m | 16kg | 3110N | 2.10 |
| R27DRE71M4 | 28.37 | 0.37KW | 49.0rpm | 73N.m | 16kg | 3240N | 1.80 |
| R27DRE71M4 | 26.09 | 0.37KW | 53.0rpm | 67N.m | 16kg | 3170N | 1.95 |
| R27DRE71M4 | 22.32 | 0.37KW | 62.0rpm | 57N.m | 16kg | 3040N | 2.30 |
| R27DRE71M4 | 19.35 | 0.37KW | 71.0rpm | 50N.m | 16kg | 2920N | 2.60 |
| R27DRE71M4 | 18.08 | 0.37KW | 76.0rpm | 46N.m | 16kg | 2860N | 2.80 |
| R27DRE71M4 | 15.63 | 0.37KW | 88.0rpm | 40N.m | 16kg | 2750N | 3.20 |
| R27DRE71M4 | 13.28 | 0.37KW | 104rpm | 34N.m | 16kg | 2620N | 3.80 |
R27DM71M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R27DM71M4 | 61.30 | 0.37KW | 23.0rpm | 157N.m | 16kg | 3870N | 0.85 |
| R27DM71M4 | 55.87 | 0.37KW | 25.0rpm | 143N.m | 16kg | 3800N | 0.90 |
| R27DM71M4 | 48.17 | 0.37KW | 29.0rpm | 123N.m | 16kg | 3680N | 1.05 |
| R27DM71M4 | 44.90 | 0.37KW | 31.0rpm | 115N.m | 16kg | 3620N | 1.15 |
| R27DM71M4 | 39.25 | 0.37KW | 35.0rpm | 100N.m | 16kg | 3510N | 1.30 |
| R27DM71M4 | 36.79 | 0.37KW | 38.0rpm | 94N.m | 16kg | 3460N | 1.40 |
| R27DM71M4 | 32.47 | 0.37KW | 42.0rpm | 83N.m | 16kg | 3350N | 1.55 |
| R27DM71M4 | 28.78 | 0.37KW | 48.0rpm | 74N.m | 16kg | 3250N | 1.75 |
| R27DM71M4 | 24.47 | 0.37KW | 56.0rpm | 63N.m | 16kg | 3110N | 2.10 |
| R27DM71M4 | 28.37 | 0.37KW | 49.0rpm | 73N.m | 16kg | 3240N | 1.80 |
| R27DM71M4 | 26.09 | 0.37KW | 53.0rpm | 67N.m | 16kg | 3170N | 1.95 |
| R27DM71M4 | 22.32 | 0.37KW | 62.0rpm | 57N.m | 16kg | 3040N | 2.30 |
| R27DM71M4 | 19.35 | 0.37KW | 71.0rpm | 50N.m | 16kg | 2920N | 2.60 |
| R27DM71M4 | 18.08 | 0.37KW | 76.0rpm | 46N.m | 16kg | 2860N | 2.80 |
| R27DM71M4 | 15.63 | 0.37KW | 88.0rpm | 40N.m | 16kg | 2750N | 3.20 |
| R27DM71M4 | 13.28 | 0.37KW | 104rpm | 34N.m | 16kg | 2620N | 3.80 |

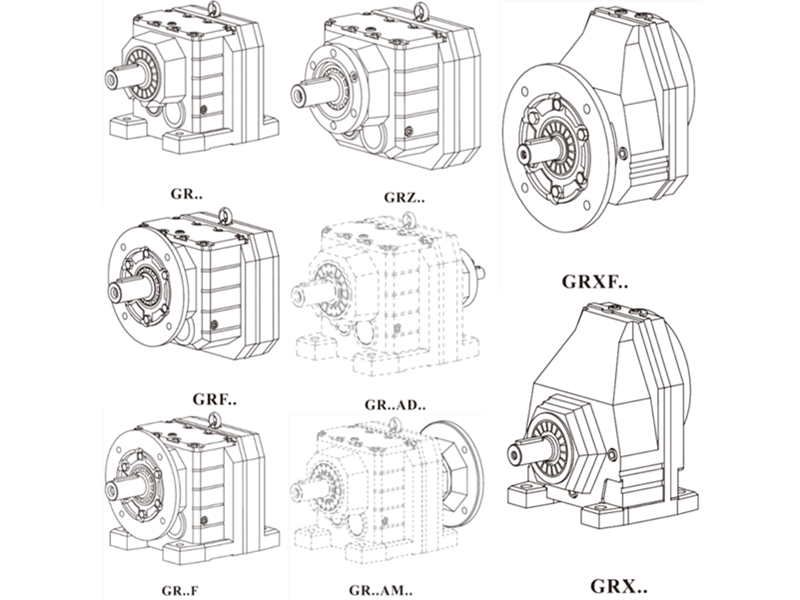

R27DRE71M4齒輪減速機馬達類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機
R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機
RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機

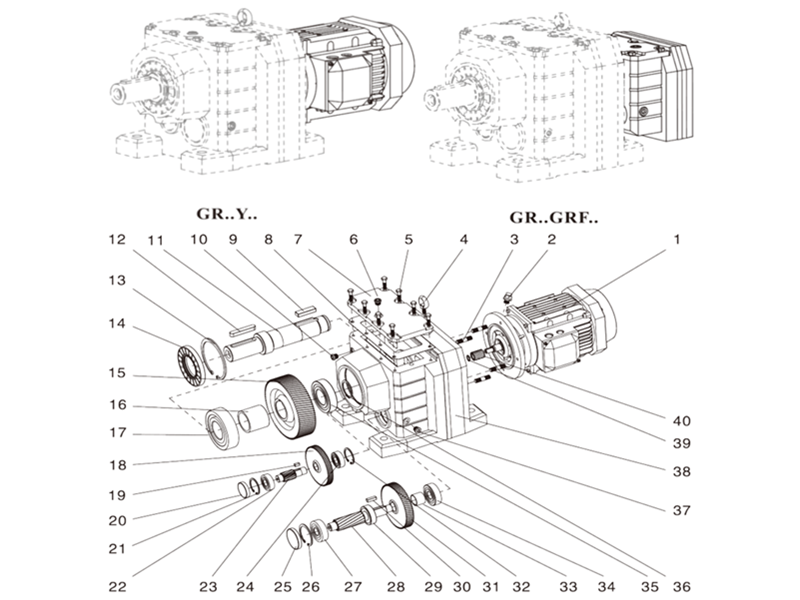

R27DRE71M4齒輪減速機馬達安裝尺寸圖紙
R27DRE71M4齒輪減速機馬達生產工廠展示：看廠請?zhí)崆叭祛A約
R系列減速機應用案例展示：
關鍵詞:R系列減速機與電機_臥式減速機_臥式齒輪減速電機一套_臥式齒輪減速機_R系列減速機生產廠家_臥式減速機生產廠家_臥式齒輪減速機生產廠家
R系列減速機型號：R17減速機,R27減速機,R37減速機,R47減速機,R57減速機,R67減速機,R77減速機,R87減速機,R97減速機,R107減速機,R137減速機,R147減速機,R167減速機
R系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 輸出轉數113.5圈/分鐘減速機電機 R27DRE71M4 R27DM71M4 輸出轉數113.5圈一分鐘減速電機 一分鐘轉113.5圈齒輪減速箱馬達 一分鐘轉113.5圈減速器 一分鐘轉113.5圈電機減速機
跟此產品相關的文檔 / Related DownLoad
| 產品文件名稱 | 點擊下載 |
| R27DRE71M4減速機樣本 |
|
| R27DRE71M4減速機三維圖紙 |
|
