KA127RF77-Y0.25KW詳細信息
KA127RF77-Y0.25KW
關鍵詞：3KW電機如何配直角中孔減速箱_KA127RF77-Y0.25KW_KA127RF77-Y80M4
KA127RF77-Y0.25KW減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KA127RF77-Y0.25KW | 9819 | 0.25KW | 0.13r/min | 15100N.m | 426kg | 75600N | 0.85 |
| KA127RF77-Y0.25KW | 8443 | 0.25KW | 0.15r/min | 13000N.m | 426kg | 79200N | 1.00 |
| KA127RF77-Y0.25KW | 7482 | 0.25KW | 0.17r/min | 11500N.m | 426kg | 79900N | 1.10 |
| KA127RF77-Y0.25KW | 6565 | 0.25KW | 0.20r/min | 10100N.m | 426kg | 80600N | 1.30 |
| KA127RF77-Y0.25KW | 5804 | 0.25KW | 0.22r/min | 8750N.m | 426kg | 81200N | 1.50 |
| KA127RF77-Y0.25KW | 5027 | 0.25KW | 0.26r/min | 7690N.m | 426kg | 81600N | 1.70 |
| KA127RF77-Y0.25KW | 4423 | 0.25KW | 0.29r/min | 6660N.m | 426kg | 81900N | 1.95 |
| KA127RF77-Y0.25KW | 3889 | 0.25KW | 0.33r/min | 5820N.m | 426kg | 82100N | 2.20 |
| KA127RF77-Y0.25KW | 3311 | 0.25KW | 0.39r/min | 4870N.m | 426kg | 82300N | 2.70 |
KA127RF77-Y80M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KA127RF77-Y80M4 | 3311 | 0.75KW | 0.43r/min | 14500N.m | 432kg | 77000N | 0.90 |
| KA127RF77-Y80M4 | 3009 | 0.75KW | 0.48r/min | 13100N.m | 432kg | 79100N | 1.00 |
| KA127RF77-Y80M4 | 2607 | 0.75KW | 0.55r/min | 11200N.m | 432kg | 80100N | 1.15 |
| KA127RF77-Y80M4 | 1926 | 0.75KW | 0.74r/min | 8650N.m | 432kg | 81200N | 1.50 |
| KA127RF77-Y80M4 | 1757 | 0.75KW | 0.82r/min | 7880N.m | 432kg | 81500N | 1.65 |
| KA127RF77-Y80M4 | 1541 | 0.75KW | 0.93r/min | 6880N.m | 432kg | 81800N | 1.90 |
| KA127RF77-Y80M4 | 1342 | 0.75KW | 1.10r/min | 6020N.m | 432kg | 82100N | 2.20 |
| KA127RF77-Y80M4 | 1177 | 0.75KW | 1.20r/min | 5250N.m | 432kg | 82200N | 2.50 |
| KA127RF77-Y80M4 | 1025 | 0.75KW | 1.40r/min | 4600N.m | 432kg | 82400N | 2.80 |
| KA127RF77-Y80M4 | 899 | 0.75KW | 1.60r/min | 4010N.m | 432kg | 82500N | 3.20 |
KA127RF77-Y0.25KW減速機類型：
K127RF77-Y0.25KW底腳安裝斜齒輪—傘齒輪減速電機
KA127BRF77-Y0.25KW底腳空心軸安裝斜齒輪—傘齒輪減速電機
KV127BRF77-Y0.25KW底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH127BRF77-Y0.25KW底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
KF127RF77-Y0.25KWB5法蘭安裝斜齒輪—傘齒輪減速電機
KAF127RF77-Y0.25KWB5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
KVF127RF77-Y0.25KWB5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHF127RF77-Y0.25KWB5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA127RF77-Y0.25KW空心軸斜齒輪─傘齒輪減速電機
KV127RF77-Y0.25KW花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH127RF77-Y0.25KW空心軸鎖緊盤斜齒輪─傘齒輪減速電機
KT127RF77-Y0.25KW空心軸安裝斜齒輪—傘齒輪減速電機
KAZ127RF77-Y0.25KWB14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
KVZ127RF77-Y0.25KWB14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHZ127RF77-Y0.25KWB14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機

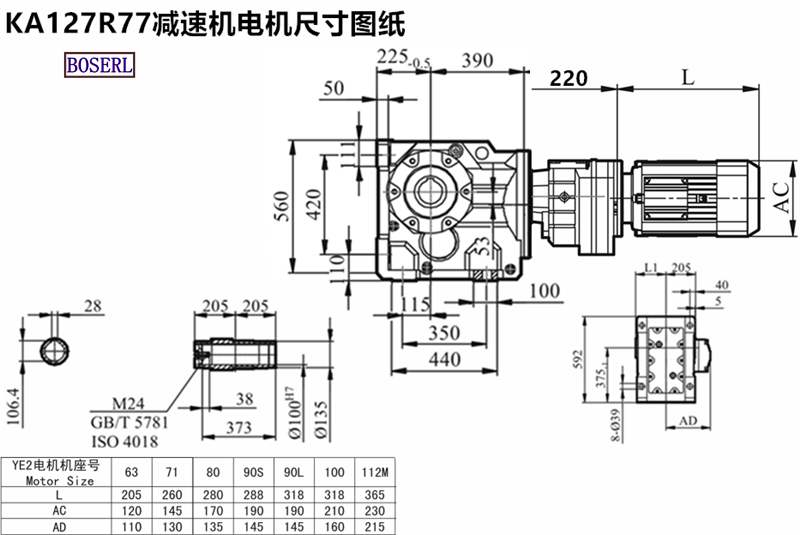

KA127RF77-Y0.25KW減速機馬達安裝尺寸圖紙
KA127RF77-Y0.25KW減速機電機生產廠家，看廠請?zhí)崆叭祛A(yù)約雙孔輸出減速電機
關鍵詞:KA系列減速機與電機_雙孔輸出減速電機一套_雙孔輸出減速機電機_雙孔輸出電機減速機_雙速電動機減速機_通孔減速機_雙速電機減速機生產廠家
KA系列減速機型號：KA37減速機,KA47減速機,KA57減速機,KA67減速機,KA77減速機,KA87減速機,KA97減速機,KA107減速機,KA127減速機,KA157減速機,KA167減速機,KA187減速機
KA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
