K37DM71S4詳細信息

prevnext

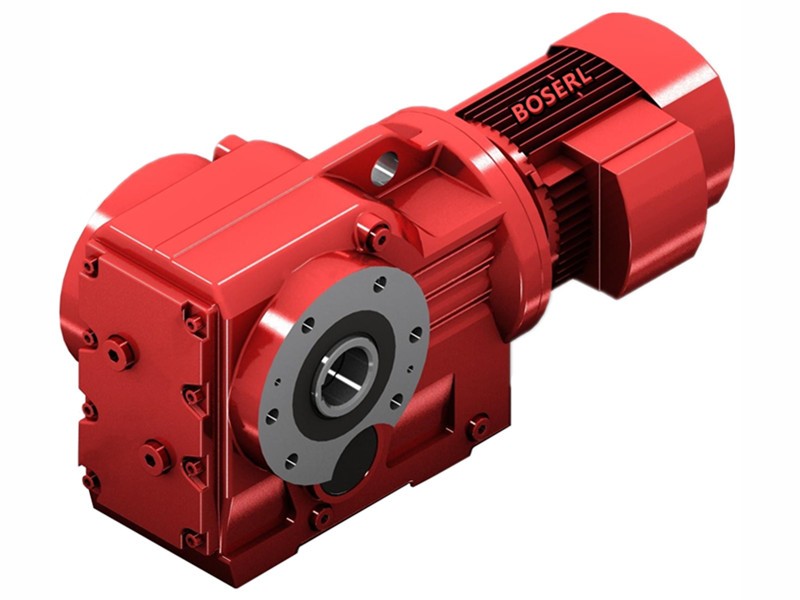

K37DM71S4

訂購熱線：13360667204

詳細信息

關鍵詞：輸出轉數25.5r/min減速機電機_K37DM71S4_K37DT71S4_25.5rpm一分鐘減速電機_每分鐘轉25.5r齒輪減速箱馬達_25.5r/min/分鐘減速器_25.5rpm電機減速機

K37DM71S4減速機電機參數：

型號	減速比	功率	轉數	扭矩	重量	力矩	安全系數
K37DM71S4	97.81	0.37kw	14rpm	250N.m	19kg	2520N	0.8
K37DM71S4	83.69	0.37kw	16rpm	210N.m	19kg	5470N	0.95
K37DM71S4	72.54	0.37kw	19rpm	186N.m	19kg	5690N	1.1
K37DM71S4	67.8	0.37kw	20rpm	174N.m	19kg	5630N	1.15
K37DM71S4	58.6	0.37kw	24rpm	150N.m	19kg	5500N	1.35
K37DM71S4	49.79	0.37kw	28rpm	128N.m	19kg	5350N	1.55
K37DM71S4	44.46	0.37kw	31rpm	114N.m	19kg	5230N	1.75
K37DM71S4	37.97	0.37kw	36rpm	97N.m	19kg	5060N	2.1
K37DM71S4	35.57	0.37kw	39rpm	91N.m	19kg	4990N	2.2
K37DM71S4	29.96	0.37kw	46rpm	77N.m	19kg	4800N	2.6
K37DM71S4	28.83	0.37kw	48rpm	74N.m	19kg	4750N	2.7
K37DM71S4	24.99	0.37kw	55rpm	64N.m	19kg	4590N	3.1
K37DM71S4	23.36	0.37kw	59rpm	60N.m	19kg	4510N	3.3
K37DM71S4	20.19	0.37kw	68rpm	52N.m	19kg	4350N	3.6
K37DM71S4	17.15	0.37kw	80rpm	44N.m	19kg	4160N	4.1
K37DM71S4	15.31	0.37kw	90rpm	39N.m	19kg	4040N	4.5
K37DM71S4	13.08	0.37kw	105rpm	34N.m	19kg	3860N	4.9
K37DM71S4	12.14	0.37kw	114rpm	31N.m	19kg	3780N	5.1
K37DM71S4	10.49	0.37kw	132rpm	27N.m	19kg	3630N	6
K37DM71S4	8.91	0.37kw	155rpm	23N.m	19kg	3460N	7
K37DM71S4	7.96	0.37kw	173rpm	20N.m	19kg	3350N	7.6
K37DM71S4	6.8	0.37kw	203rpm	17N.m	19kg	3190N	8.6
K37DM71S4	6.37	0.37kw	217rpm	16N.m	19kg	3130N	8.9
K37DM71S4	5.36	0.37kw	257rpm	14N.m	19kg	2970N	10

K37DT71S4減速機電機參數：

型號	減速比	功率	轉數	扭矩	重量	力矩	安全系數
K37DT71S4	97.81	0.37kw	14rpm	250N.m	19kg	2520N	0.8
K37DT71S4	83.69	0.37kw	16rpm	210N.m	19kg	5470N	0.95
K37DT71S4	72.54	0.37kw	19rpm	186N.m	19kg	5690N	1.1
K37DT71S4	67.8	0.37kw	20rpm	174N.m	19kg	5630N	1.15
K37DT71S4	58.6	0.37kw	24rpm	150N.m	19kg	5500N	1.35
K37DT71S4	49.79	0.37kw	28rpm	128N.m	19kg	5350N	1.55
K37DT71S4	44.46	0.37kw	31rpm	114N.m	19kg	5230N	1.75
K37DT71S4	37.97	0.37kw	36rpm	97N.m	19kg	5060N	2.1
K37DT71S4	35.57	0.37kw	39rpm	91N.m	19kg	4990N	2.2
K37DT71S4	29.96	0.37kw	46rpm	77N.m	19kg	4800N	2.6
K37DT71S4	28.83	0.37kw	48rpm	74N.m	19kg	4750N	2.7
K37DT71S4	24.99	0.37kw	55rpm	64N.m	19kg	4590N	3.1
K37DT71S4	23.36	0.37kw	59rpm	60N.m	19kg	4510N	3.3
K37DT71S4	20.19	0.37kw	68rpm	52N.m	19kg	4350N	3.6
K37DT71S4	17.15	0.37kw	80rpm	44N.m	19kg	4160N	4.1
K37DT71S4	15.31	0.37kw	90rpm	39N.m	19kg	4040N	4.5
K37DT71S4	13.08	0.37kw	105rpm	34N.m	19kg	3860N	4.9
K37DT71S4	12.14	0.37kw	114rpm	31N.m	19kg	3780N	5.1
K37DT71S4	10.49	0.37kw	132rpm	27N.m	19kg	3630N	6
K37DT71S4	8.91	0.37kw	155rpm	23N.m	19kg	3460N	7
K37DT71S4	7.96	0.37kw	173rpm	20N.m	19kg	3350N	7.6
K37DT71S4	6.8	0.37kw	203rpm	17N.m	19kg	3190N	8.6
K37DT71S4	6.37	0.37kw	217rpm	16N.m	19kg	3130N	8.9
K37DT71S4	5.36	0.37kw	257rpm	14N.m	19kg	2970N	10

K37DM71S4減速機類型：

K..DR..底腳安裝斜齒輪—傘齒輪減速電機

KA..B DR..底腳空心軸安裝斜齒輪—傘齒輪減速電機

KV..B DR..底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機

KH..B DR..底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機

KF..DR..B5法蘭安裝斜齒輪—傘齒輪減速電機

KAF..DR..B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機

KVF..DR..B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機

KHF..DR..B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機

KA..DR..空心軸斜齒輪─傘齒輪減速電機

KV..DR..花鍵空心軸安裝斜齒輪—傘齒輪減速電機

KH..DR..空心軸鎖緊盤斜齒輪─傘齒輪減速電機

KT..DR..空心軸安裝斜齒輪—傘齒輪減速電機

KAZ..DR..B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機

KVZ..DR..B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機

KHZ..DR..B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機


K37DM71S4減速機馬達安裝尺寸圖紙

K37DM71S4減速機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約

K系列減速機應用案例展示：

關鍵詞:K系列減速機與電機_傳動箱_傳動角箱_傳動減速機電機一套_傳動減速器_螺旋錐齒輪減速機_K系列減速機生產廠家

K系列減速機型號：K37減速機,K47減速機,K57減速機,K67減速機,K77減速機,K87減速機,K97減速機,K107減速機,K127減速機,K157減速機,K167減速機,K187減速機

K系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求

標簽: 輸出轉數25.5r/min減速機電機 K37DM71S4 K37DT71S4 25.5rpm一分鐘減速電機 每分鐘轉25.5r齒輪減速箱馬達 25.5r/min/分鐘減速器 25.5rpm電機減速機

上一條K37DVE71S4
下一條K37DRN63L4

跟此產品相關的文檔 / Related DownLoad

產品文件名稱	點擊下載
K37DM71S4減速機樣本
K37DM71S4三維圖紙
