FA157/GDV180S4詳細信息
FA157/GDV180S4
關鍵詞：每分鐘161轉減速機電機_FA157/GDV180S4_FA157/GDRN180S4
FA157/GDV180S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA157/GDV180S4 | 178.20 | 18.5KW | 8.20rpm | 21400N.m | 1122kg | 88200N | 0.85 |
| FA157/GDV180S4 | 162.96 | 18.5KW | 9.00rpm | 19600N.m | 1122kg | 95000N | 0.90 |
| FA157/GDV180S4 | 141.80 | 18.5KW | 10.0rpm | 17000N.m | 1122kg | 102800N | 1.05 |
| FA157/GDV180S4 | 125.14 | 18.5KW | 12.0rpm | 15000N.m | 1122kg | 107900N | 1.20 |
| FA157/GDV180S4 | 108.49 | 18.5KW | 14.0rpm | 13000N.m | 1122kg | 112100N | 1.40 |
| FA157/GDV180S4 | 96.53 | 18.5KW | 15.0rpm | 11600N.m | 1122kg | 111300N | 1.55 |
| FA157/GDV180S4 | 85.80 | 18.5KW | 17.0rpm | 10300N.m | 1122kg | 109300N | 1.75 |
| FA157/GDV180S4 | 78.46 | 18.5KW | 19.0rpm | 9460N.m | 1122kg | 107600N | 1.90 |
| FA157/GDV180S4 | 68.28 | 18.5KW | 21.0rpm | 8230N.m | 1122kg | 104900N | 2.20 |
| FA157/GDV180S4 | 60.25 | 18.5KW | 24.0rpm | 7260N.m | 1122kg | 102300N | 2.50 |
| FA157/GDV180S4 | 52.24 | 18.5KW | 28.0rpm | 6290N.m | 1122kg | 99400N | 2.90 |
FA157/GDRN180S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA157/GDRN180S4 | 178.20 | 18.5KW | 8.20rpm | 21400N.m | 1122kg | 88200N | 0.85 |
| FA157/GDRN180S4 | 162.96 | 18.5KW | 9.00rpm | 19600N.m | 1122kg | 95000N | 0.90 |
| FA157/GDRN180S4 | 141.80 | 18.5KW | 10.0rpm | 17000N.m | 1122kg | 102800N | 1.05 |
| FA157/GDRN180S4 | 125.14 | 18.5KW | 12.0rpm | 15000N.m | 1122kg | 107900N | 1.20 |
| FA157/GDRN180S4 | 108.49 | 18.5KW | 14.0rpm | 13000N.m | 1122kg | 112100N | 1.40 |
| FA157/GDRN180S4 | 96.53 | 18.5KW | 15.0rpm | 11600N.m | 1122kg | 111300N | 1.55 |
| FA157/GDRN180S4 | 85.80 | 18.5KW | 17.0rpm | 10300N.m | 1122kg | 109300N | 1.75 |
| FA157/GDRN180S4 | 78.46 | 18.5KW | 19.0rpm | 9460N.m | 1122kg | 107600N | 1.90 |
| FA157/GDRN180S4 | 68.28 | 18.5KW | 21.0rpm | 8230N.m | 1122kg | 104900N | 2.20 |
| FA157/GDRN180S4 | 60.25 | 18.5KW | 24.0rpm | 7260N.m | 1122kg | 102300N | 2.50 |
| FA157/GDRN180S4 | 52.24 | 18.5KW | 28.0rpm | 6290N.m | 1122kg | 99400N | 2.90 |
FA157/GDV180S4齒輪減速機馬達類型：
F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA..B底腳空心軸安裝平行軸—斜齒輪減速機
FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA..空心軸安裝平行軸—斜齒輪減速機
FV..花鍵空心軸安裝平行軸—斜齒輪減速機
FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ..是B14法蘭安裝平行軸—斜齒輪減速機
FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF..是B5法蘭安裝平行軸—斜齒輪減速機
FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

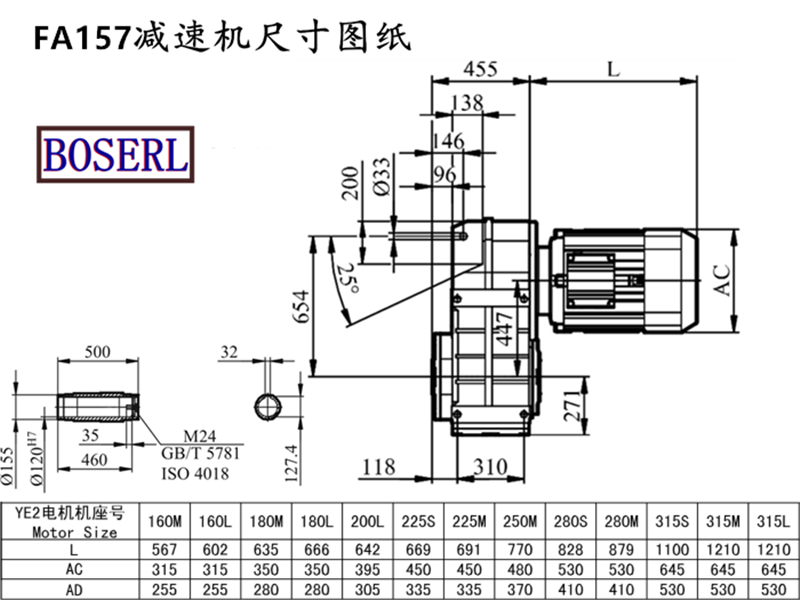

FA157/GDV180S4齒輪減速機馬達安裝尺寸圖紙
FA157/GDV180S4齒輪減速機馬達生產廠家，看廠請?zhí)崆叭祛A約三相變頻電機減速機
關鍵詞:FA系列減速機與電機_變頻減速機_三相變頻電機減速器一套_變頻減速電機_變頻剎車電動機齒輪箱_三相變頻電機減速機_變頻減速電機生產廠家
FA系列減速機型號：FA27減速機,FA37減速機,FA47減速機,FA67減速機,FA77減速機,FA87減速機,FA97減速機,FA107減速機,FA127減速機,FA157減速機
FA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 每分鐘161轉減速機電機 FA157/GDV180S4 FA157/GDRN180S4
